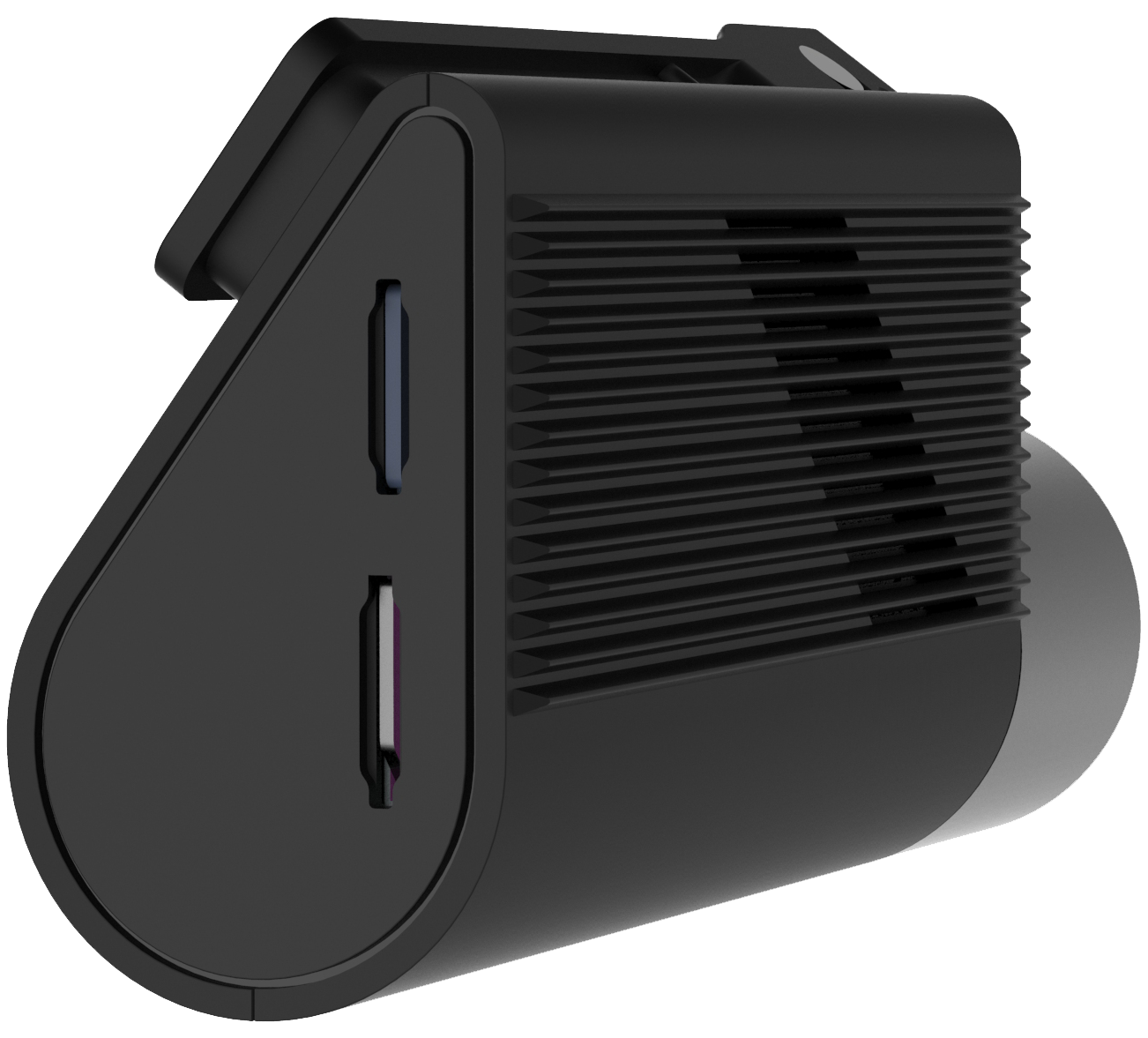

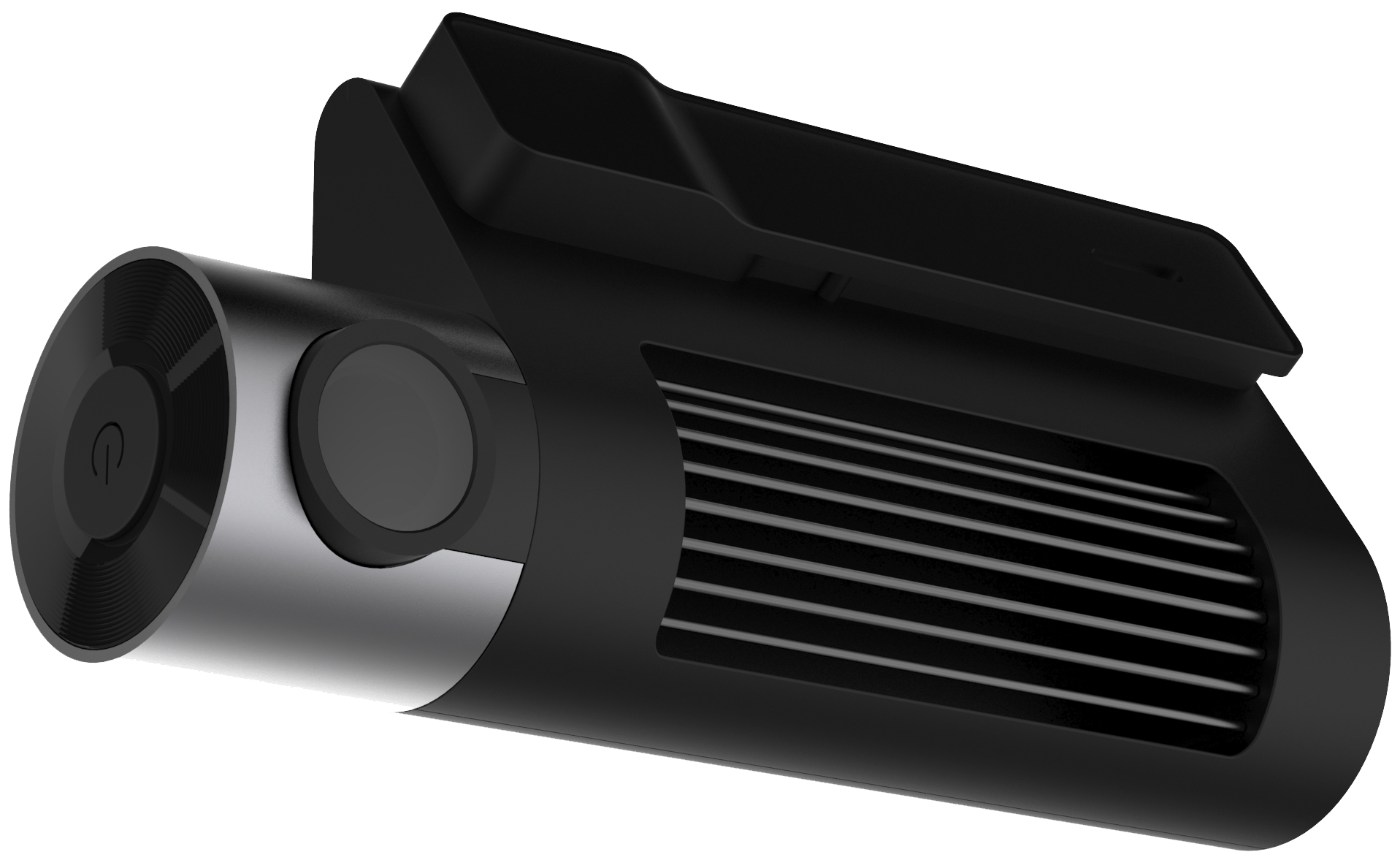

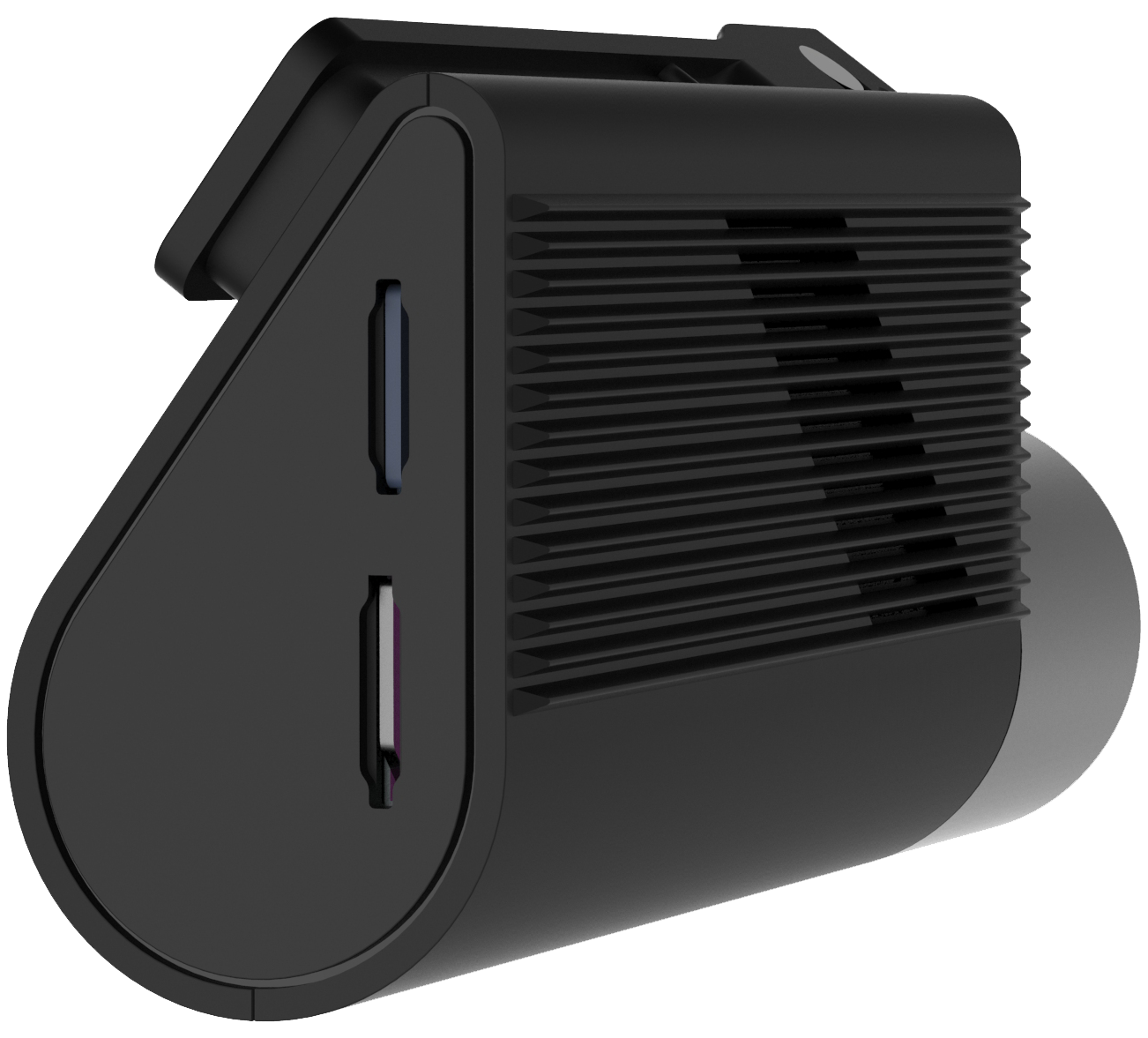

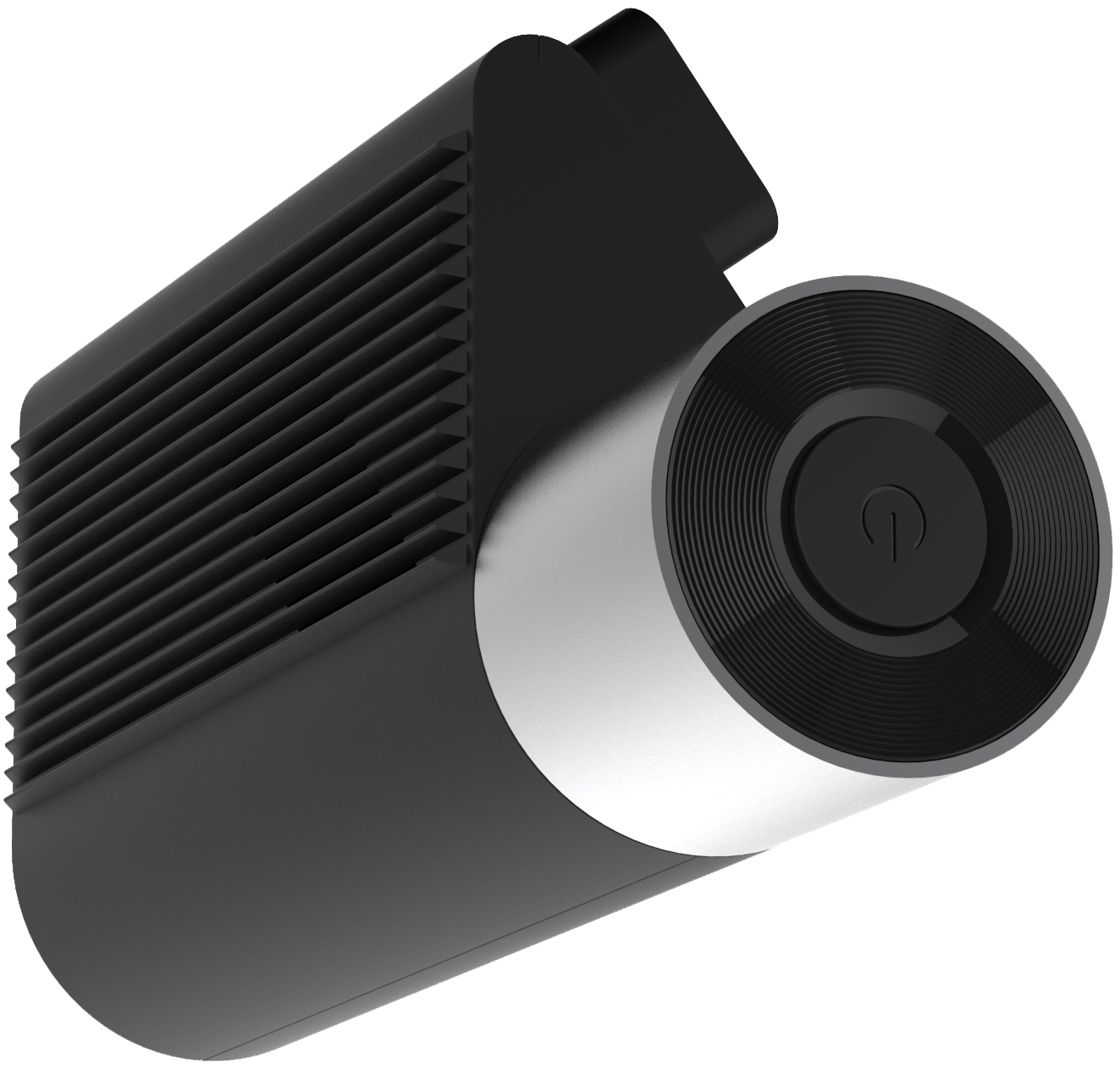

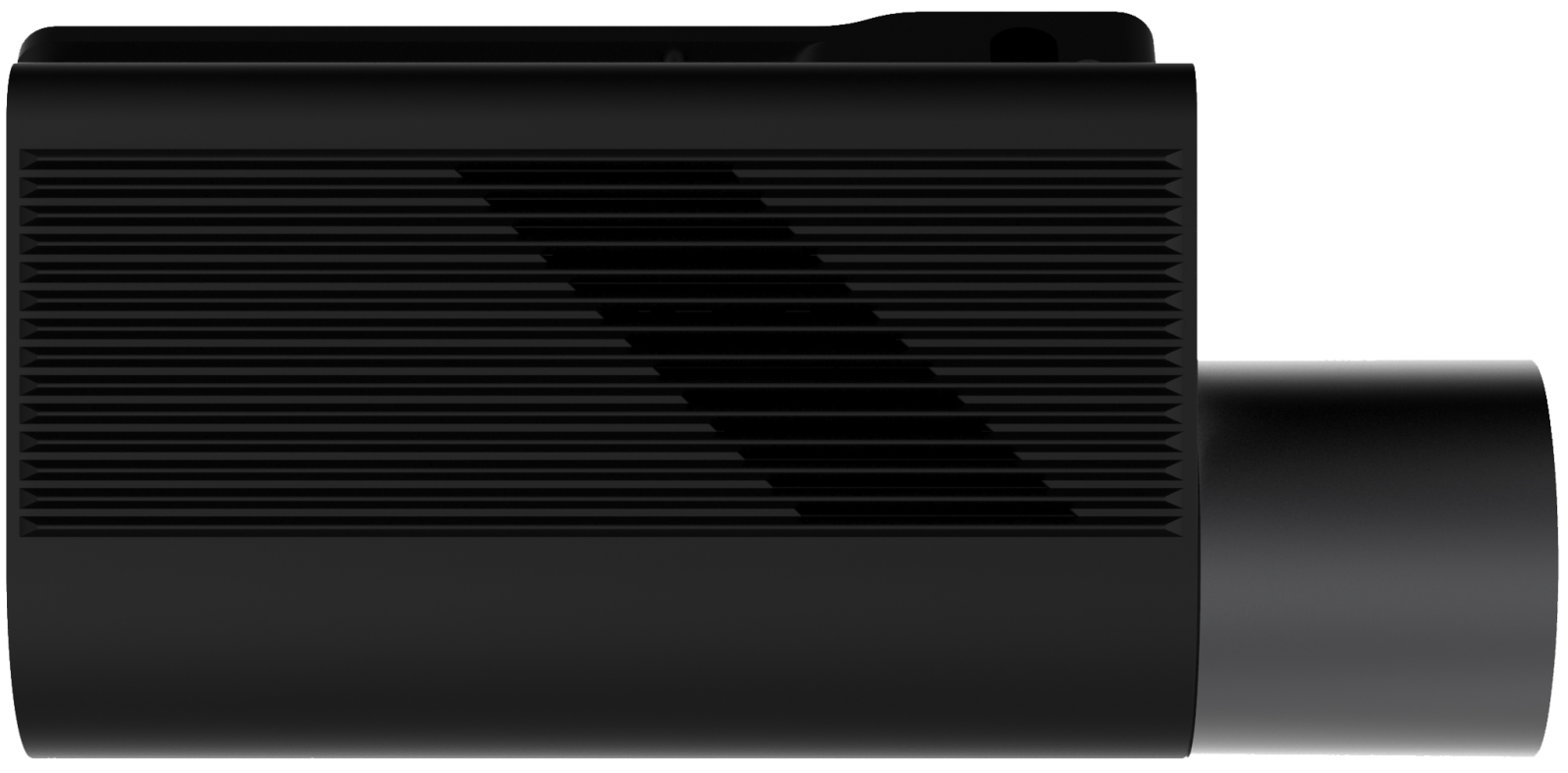

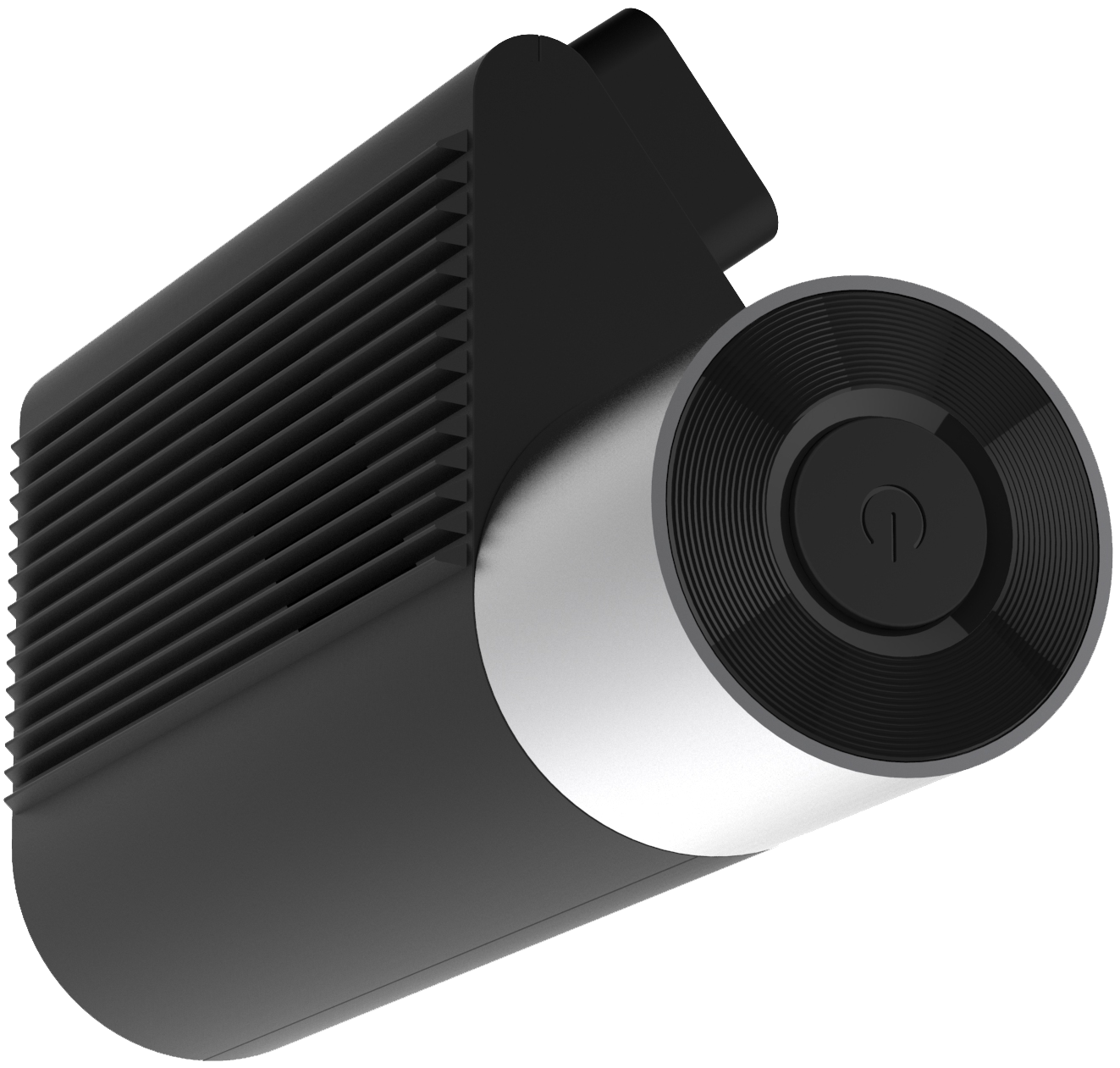

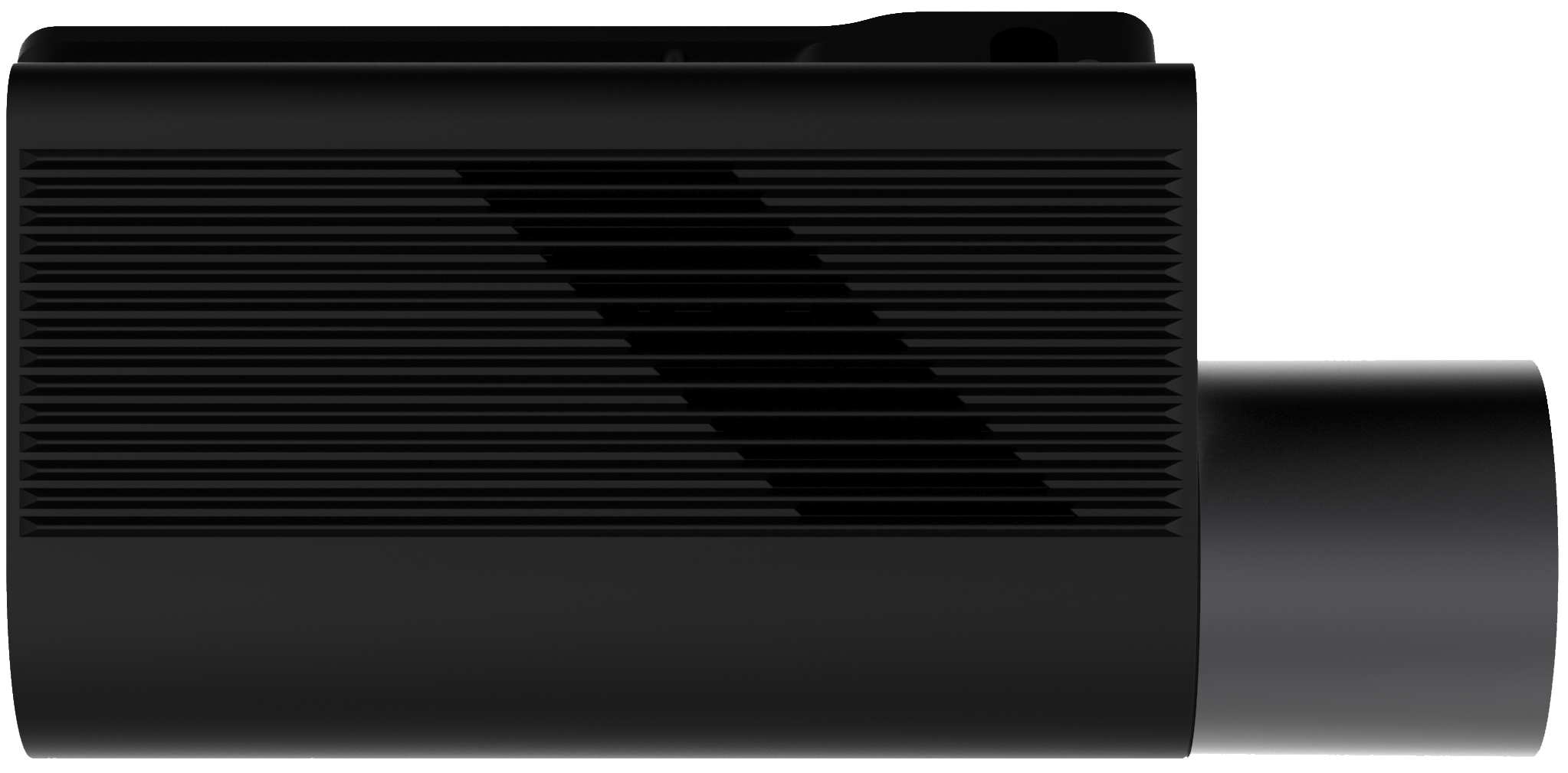

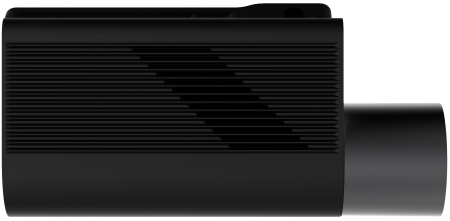

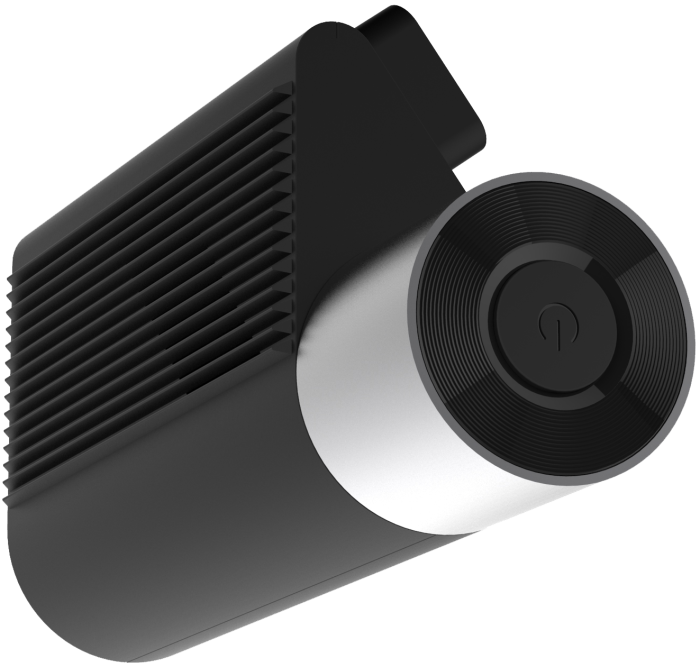

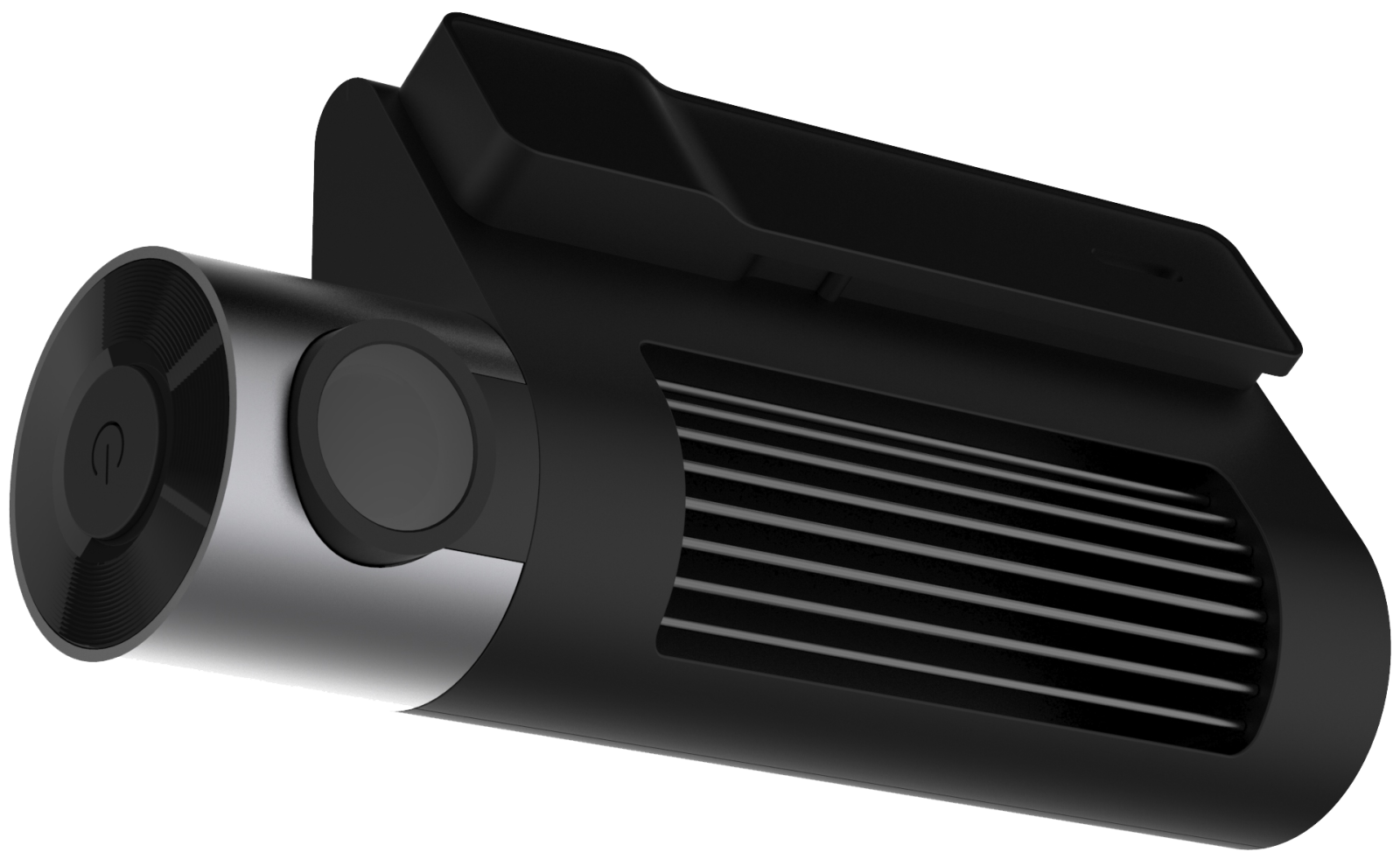

Model MSR-D7
CPU AX620Q / AX620QZ ARM Cortex-A53, 1.2GHz (Quad Core)
4G Module L511E-2C / L509REND-SC
OS Linux 4.19
RAM LPDDR 256MB
Memory Flash 128MB
MicroSD Card Max 512GB
Rear Camera Optional
Button ON / OFF
Interface BMW wire interface
Network FDD-LTE (4G), TDD-LTE (4G)
4G Frequency FDD-LTE B1/B3/B5/B7/B8/B20/B28; TDD-LTE B38/B40/B41
GPS Location BDS / GPS / GLONASS
Data Service LTE / WCDMA / HSDPA / HSUPA
DVR H.265, 2K Front + 1080P Rear, 25 fps, Loop Recording
Front Camera SC431ai, 2560×1440P (2K), viewing angle 140°
Rear Camera SC2336, 1920×1080P, viewing angle 130° — optional
Wi-Fi 802.11b/g/n (WLAN), 2.4G WiFi 6
G-Sensor Support
TS Streaming Support, TS Streaming Record
MIC & Speaker Support Dual-way Talking
Remote Monitoring APP & Platform, Remote Video and Remote Image
Playback APP playback with Wi-Fi and remotely
Live View RTMP Live View via APP
History Tracking Playback Support 3 Months
Parking Monitoring Time-Lapse Record, 12H / 24H / 48H Optional
Low Power Protect Support
Vibration Alarm Support
Anti-theft Alarm Support
Geofence Alarm Support
Over-speed Alarm Support
Operating Temperature -20°C ~ 70°C
Operating Humidity 0 ~ 90%, Non-Condensed
